1) Implementation standard: GB/T27676-2011 Conductive aluminum tube or ASTM B 317M-07
2) Product Alloy: 6101
3) Product Temper: H18，T6，O

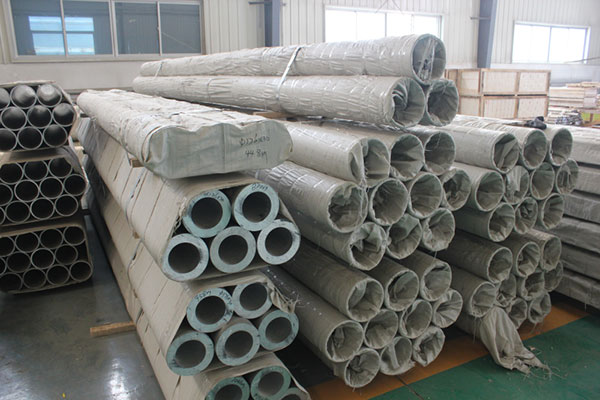

4) The product is hollow tubular structure with glossy surface, beautiful appearance and uniform size.
5)The outer diameter is from 60mm to 450mm.
6)The Wall thickness from 3mm to 15mm.
7) The length of a single bus tube pipe conductor can reach up to 15 meters.
- The Chemical composition and Mechanical properties of 6101 Conductive aluminum tube
| Alloy | Chemical component(%) | ||||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Zn | B | Ti | Zr | Other | Al | ||
| Each | Total | ||||||||||||
| 6101 | 0.30-0.7 | ≤0.50 | ≤0.10 | ≤0.03 | 0.35-0.8 | ≤0.03 | ≤0.10 |
≤ 0.06 |
- | － | ≤0.03 | ≤0.10 | Rem |
| Property / Alloy | 6101 | |
| Temper | H18，T6 | O |
| Density（g/cm³）（20℃） | 2.73 | |
| Melting point ℃ | 616-665 | |
| Tensile Strength MPa | ≥210 | ≤130 |
| Yield strength MPa | ≥185 | ≤110 |
| Elongation % | ≥8 | ≥20 |
|
Thermal conductivity, （K /℃ x cm x s） |
0.5 | |
| Electrical Conductivity IACS% | 52 | 52 |
|
20℃ Temperature coefficient of electrical resistance I/℃ |
0.0032 | |
|
20℃ Electrical Resistivity β，Ω.m㎡/m |
0.031 | 0.031 |
| Poisson's Coefficient μ | 0.31 | |
